RAVEN 7 VTOL UAV (Electric & Hybrid Propulsion)

RAVEN 7 VTOL UAV (Electric & Hybrid Propulsion)

0.00

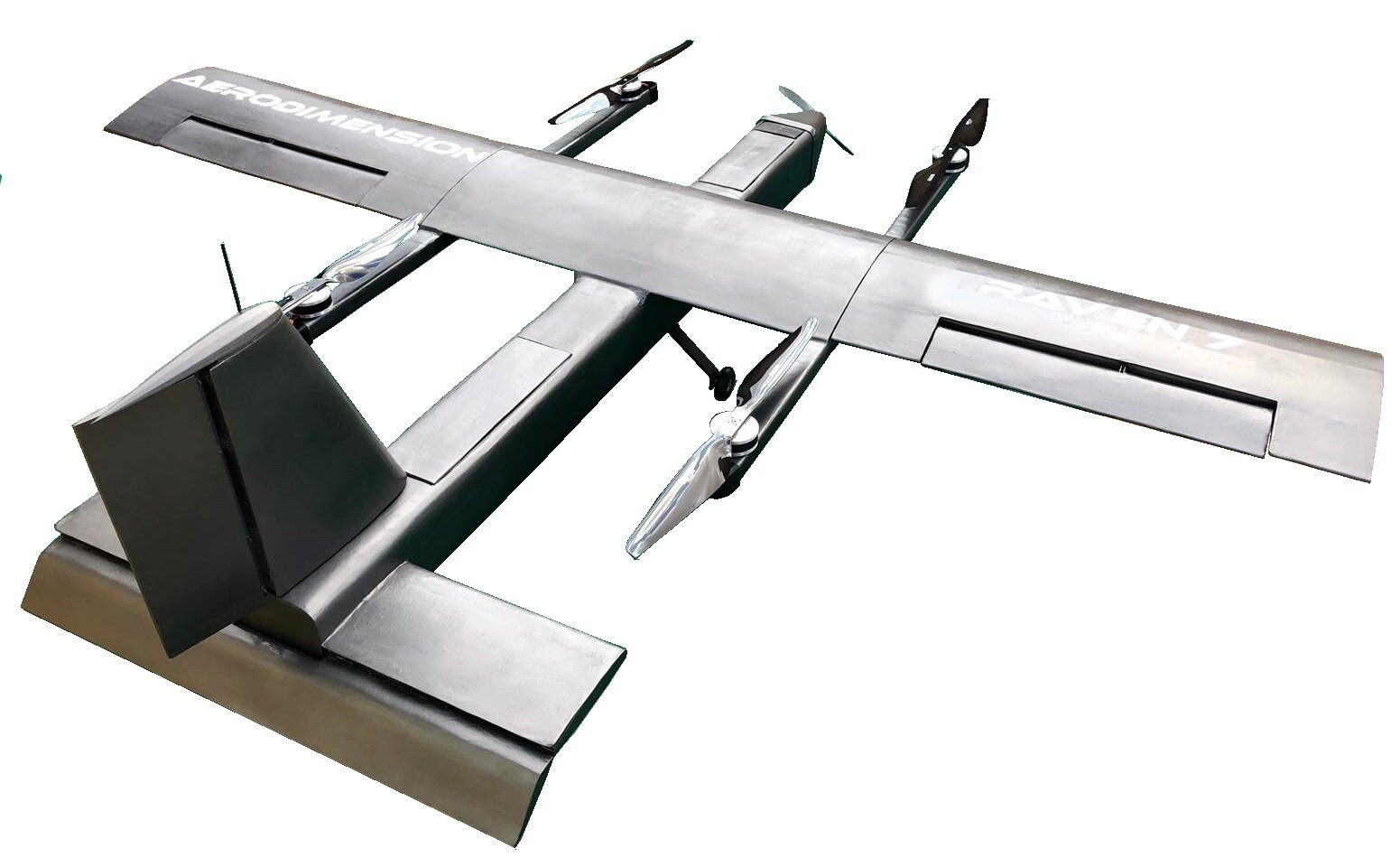

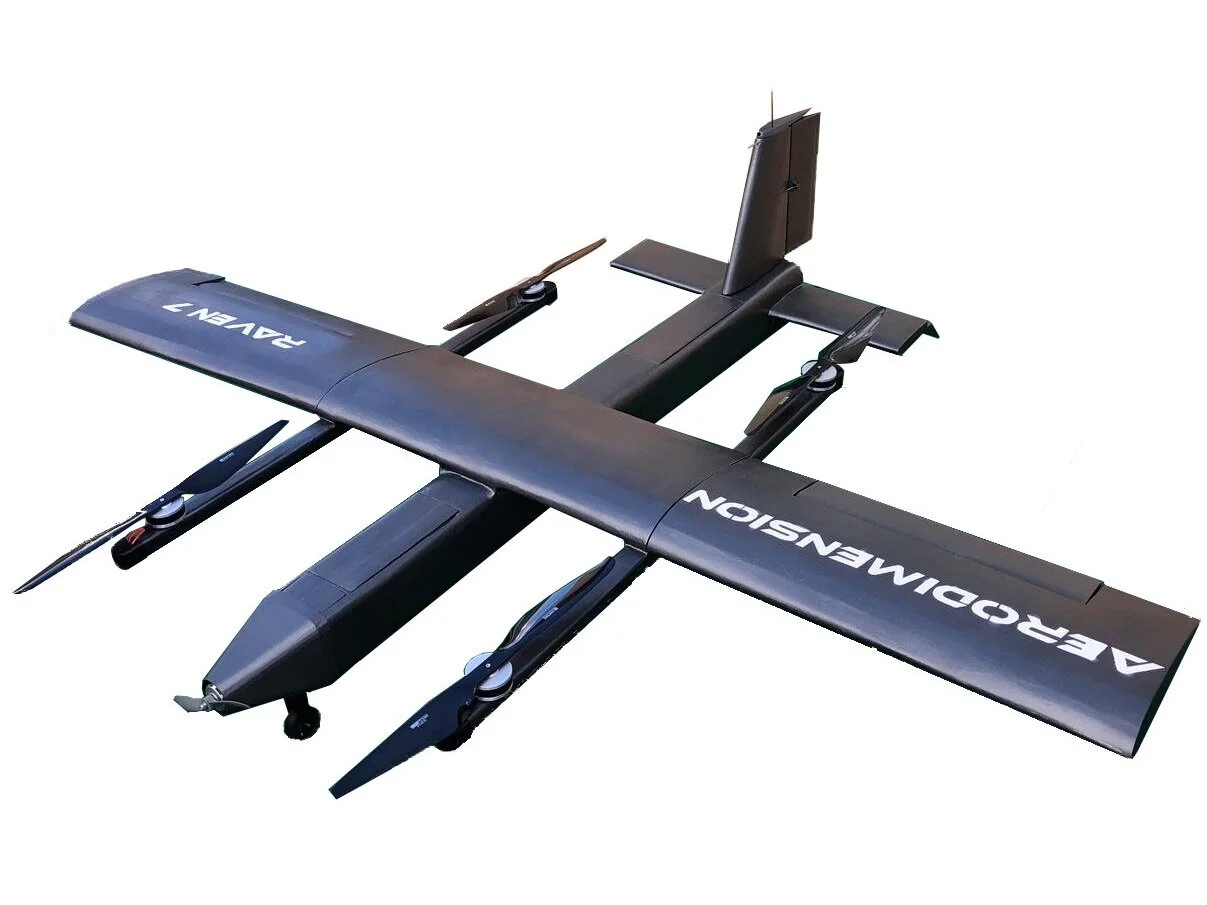

The Raven 7 is vertical and horizontal take off and land capable unmanned aerial cargo vehicle that is manufactured from high strength aerospace grade composites. Electronics are professionally manufactured and customized for highly accurate and reliable flight envelope. Raven 7 has triple redundancy on flight controller and control surfaces provides market leading reliability that comes completely ready to fly. Ravens’ vertical and horizontal flying systems can perform independently and can still make safe landing in case of any failure occur on any system on board. The most significant point of Raven’s incredible performance is 94% of parts and systems used in aircraft manufactured and customized by hand with highest quality materials and parts available in the aviation industry. Raven is able to carry a variety of payloads, such as high quality cameras, thermal cameras, night imaging cameras, and any other industrial sensors or payloads weighing under 50 Lb.

ELECTRIC PROPULSION SPECIFICATIONS **

  • Flight Modes: Fully autonomous***, semi-autonomous (Alt hold, self-stabilizing, etc), and manual flight mode.

  • Max Payload: 50 Lbs (22.7 Kg)

  • Max Speed: 107 Mph (172.2 Km/h)

  • Wing Span: 10 Ft (3 Meter)

  • UAV Take off Dimensions (L x W x H): 90” x 120” x 27”

  • UAV Transportation Dimensions (L x W x H): 90” x 40” x 10”

  • Approx. Max Flight Time (without payload): 15+ Hours

  • Approx. Max Flight Range (without payload): 900+ Miles (1500+ Km)

  • Approx. Max Control Range: 60 Miles ****

  • Approx. Max Video Transmitting Range: 60 Miles ****

  • Max Wind Resistance: 37 mph in gust / 35 mph in steady

  • Operating Temperature: -30°C to +60°C

  • Redundancy:

    • Triple Redundancy on Aircraft Control Surfaces

    • Triple Redundant IMU System

HYBRID PROPULSION SPECIFICATIONS **

  • Flight Modes: Fully autonomous***, semi-autonomous (Alt hold, self-stabilizing, etc), and manual flight mode.

  • Max Payload: 50 Lbs ( 22.7 Kg)

  • Max Speed: 120 Mph (193.1 Km/h)

  • Wing Span: 10 Ft (3 Meter)

  • UAV Take off Dimensions (L x W x H): 90” x 120” x 27”

  • UAV Transportation Dimensions (L x W x H): 90” x 40” x 10”

  • Approx. Max Flight Time (without payload): 37+ Hours

  • Approx. Max Flight Range (without payload): 2000+ Miles (3200+ Km)

  • Approx. Max Control Range: 60 Miles ****

  • Approx. Max Video Transmitting Range: 60 Miles ****

  • Max Wind Resistance: 37 mph in gust / 35 mph in steady

  • Operating Temperature: -20°C to +55°C

  • Redundancy:

    • Triple Redundancy on Aircraft Control Surfaces

    • Triple Redundant IMU System

**Aircraft performance may affected from weather, geographical condition, payload and customization.

***Flight altitude and flight path has to be supervised by operator, and it is operator’s responsibility that to make sure flight path is obstacle free

****Transmitting ranges can be extended up to +125 Miles optionally.

RAVEN 7 VTOL UAV KIT INCLUDES:

Includes everything required for autonomous, semi autonomous and manual flying.

  • Ready to fly RAVEN 7 VTOL UAV

  • GPS

  • Triple Redundant Flight Controller

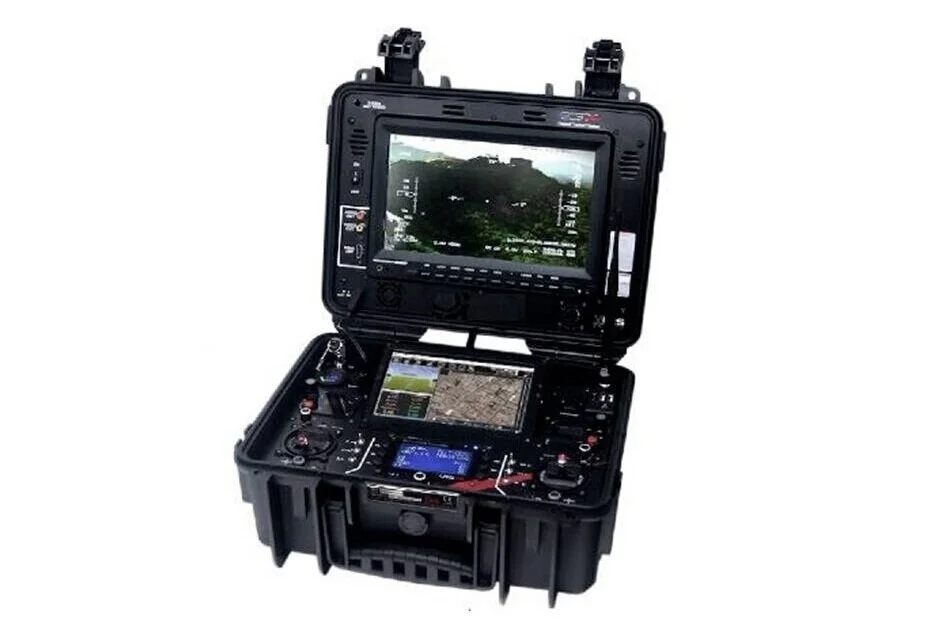

  • Ground Control Station

  • Antenna Tracker

  • Required Batteries

  • Battery Charger & Required Cables

  • FPV Camera

  • FPV Video Transmitting System

  • OEM Spare Parts

  • Owner’s Manual

We are a local company located at California, USA with highly skilled engineers, technicians, and pilots.  Final assembly of our UAVs are completed in California, USA. All UAVs are hand tested for flying before it is shipped.

Please don't hesitate for asking questions about products or any customization.
